Using a Sidecar to Collect Application Metrics With a9s Prometheus

Introduction

Retrieving application metrics is usually not difficult; it can be as simple as implementing a metrics endpoint and allowing Prometheus, for example, to query that endpoint.

However, once you deploy your application to Cloud Foundry, you will eventually run into problems, one of the most likely scenarios is that the application's endpoint cannot be easily retrieved from a running a9s Prometheus Service Instance, which is to be scraped. In this type of scenario, either the endpoint is not reachable from the network where the a9s Prometheus Service Instance is running, or there are multiple instances of your application running at the same time, so each time Prometheus retrieves the application you are redirected to a different instance via the Gorouter as it acts as a load balancer.

Although Prometheus does not work this way, there is a way around it. Instead of having Prometheus scrape the metrics endpoint, the metrics can be sent to a Graphite Exporter endpoint, which is then scraped by Prometheus.

a9s Prometheus contains Prometheus, the Prometheus Alertmanager, a Graphite Endpoint, and also a Grafana dashboard connected to Prometheus. You only need a sidecar deployed in your application container to stream the metrics to the Graphite Exporter.

In this example, we will deploy a simple application to Cloud Foundry, this application provides a metrics endpoint. The sidecar is packaged in a buildpack and deployed in parallel with the application via the application's manifest. The actual application is not changed in the process. Thus, the effort is reduced to customizing the manifest, and only a few lines are added.

Deploy a9s Prometheus

a9s Prometheus does not provide the ability to display application metrics by default. This is because the Graphite Exporter has a mapping configuration that transfers Graphite-compliant metrics into Prometheus metrics that are enriched with tags. By default, the Graphite Exporter is set to strictly adhere to these mappings and reject others. Therefore, you might have to adapt this configuration by setting the 'mapping_strict_match' property to false.

The Sidecar

For the sidecar, this example uses the telegraf-buildpack. It includes Telegraf, which is a plugin-driven server agent for collecting and sending metrics.

The sidecar is coupled to your application, scrapes the application's metrics endpoint, and forwards those metrics to a configured Graphite Exporter. Additionally, system metrics from the application container itself are also sent to this endpoint.

The App

The application is written in Go and provides basic metrics in addition to serving a static page. These metrics are exposed via a separate metrics endpoint using this Prometheus approach.

Checkout the Sample Application

Check out the application with git clone and have a look at the application manifest.

$ git clone https://github.com/anynines/a9s-metrics-example.git

Change into the directory.

$ cd a9s-metrics-example

The Application Manifest File

The repository already contains the manifest file. There are three important parts.

1. In the buildpacks section, the telegraf-buildpack is already at the beginning of the list. Do not change the order, as this may cause a deployment error. You can find the official repository here.

2. The buildpack is designed to automatically use a bound a9s Prometheus Service Instance. Therefore, you must define the service to bind in the services section. Cloud Foundry and the a9s Service Broker will then automatically take care of the necessary parameters to connect to the a9s Prometheus Service Instance.

3. If you use another Prometheus offering, or if either the instance name in VCAP_SERVICES or your application differs from a9s-Prometheus, you have to set the env variables GRAPHITE_HOST and GRAPHITE_PORT.

   env:
     GRAPHITE_HOST: phd31bf28-prometheus-0.node.dc1.consul.dsf2
     GRAPHITE_PORT: 9109

Push the App

Simply push the application with the cf push command.

$ cf push

Observing the Metrics

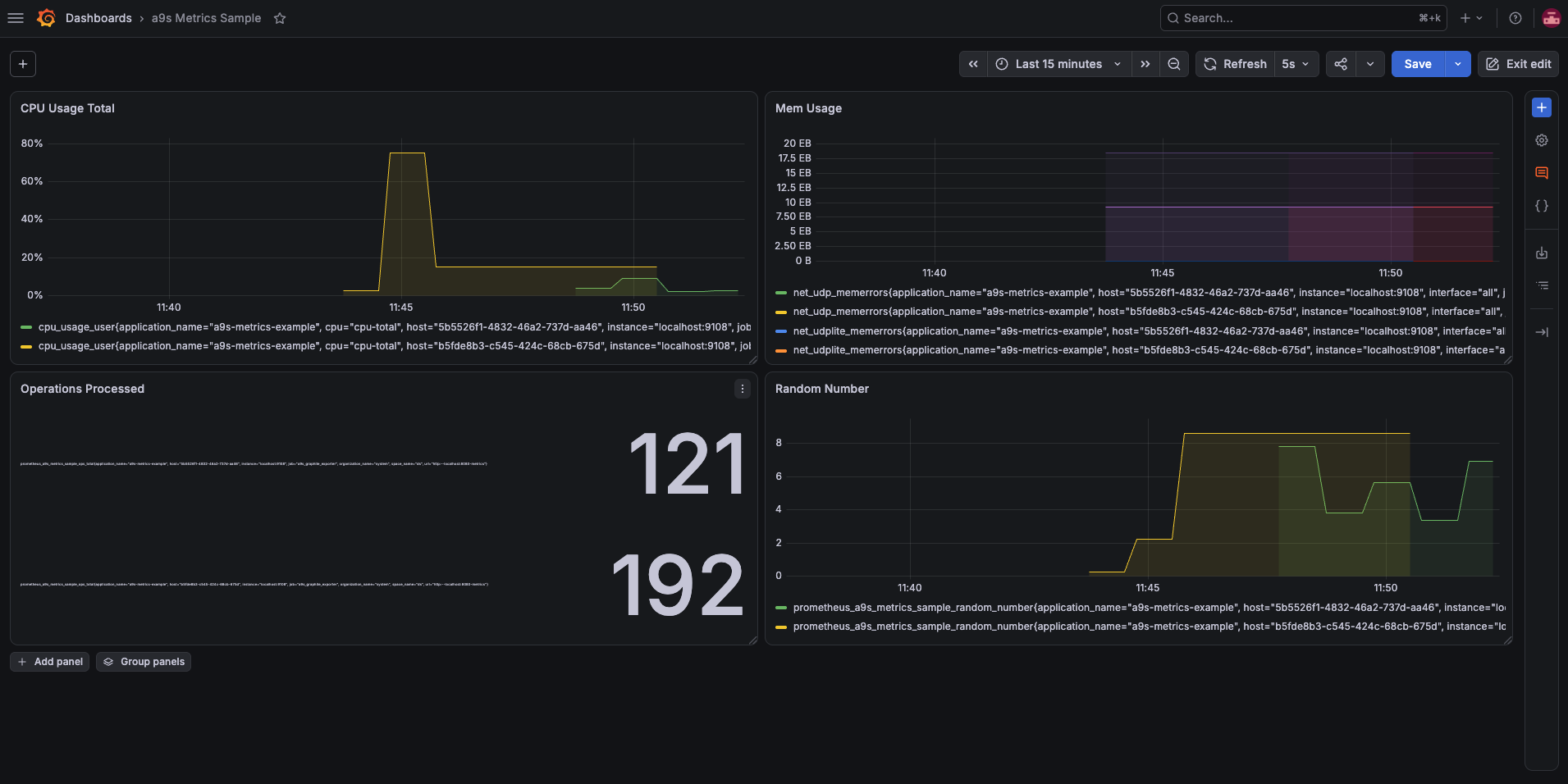

When the application is pushed, we can open the Grafana dashboard in our Service Instance and use the example dashboard provided at a9s-metrics-example/example/dashboard.json to see the metrics. Just copy the JSON data into a new dashboard.
